M38 X 1.5 BAER ROUND DIE 121401116

Product information

BAER Round Cutting Die MF 38 x 1.5 - HSS

The die is a reliable and durable tool that helps you to produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stock and holders. This allows you to handle the die safely and comfortably. The BAER round die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. The die holder is used to cut the threads by hand and with the special die holders you can also attach the round die to a tailstock or drill press. The dies can usually be used on both sides and have a perfect cut. The tap is made of the high-speed steel HSS, which has better toughness and is less susceptible to breakage than HSSE steel. HSS steel is also a popular material for making tools that are subjected to high stresses. HSS cutting dies can be used for structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloyed copper and short-chipping copper-tin alloys. Also plastics such as POM, PVC etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 20 mm
Diameter 38
Nominal diameter in inches 1,496
Nominal diameter in mm 38
Pitch 1,5
Pitch in mm 1,5
Dimension MF 38 x 1,5

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard MF: Metric ISO fine thread according to DIN 13
Tolerance ISO-6g
Direction Right
Standard DIN 223 (DIN EN 2256
Material HSS

Technical information - Cutting dies

Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
1,5
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSS
Tolerance: ISO-6g
Tolerance
ISO-6g

Applications



  • General-purpose use up to 750 N/mm²
  • general structural steels, free-cutting steels, case-hardening steels and unalloyed heat-treatable steels
  • Pure copper, low-alloyed copper, as well as short-chipping copper-tin alloys
  • Plastics such as POM, PVC, etc.

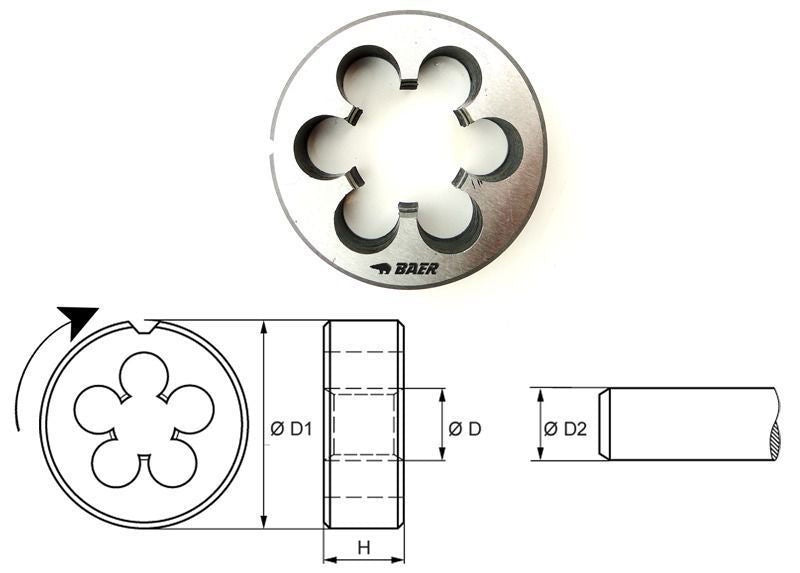

Technical drawing

Bolt pre-cutting diameter D2 37,85 mm
Height H 20 mm
Outside diameter D1 75 mm
Dimension Diameter D MF 38 x 1,5
Diameter 38

Application – Sample materials for dies

General construction steels
1.0035 S185 (St33)
1.0036 S235JRH
1.0039 S235JRG1+CR
1.0060 E335 (St60-2)
Free-cutting steels
1.0718 11SMnPb30
1.0721 10S20
1.0726 35S20
1.0758 60SPb20
Case-hardening steels
1.0401 (C15)
1.7016 17CR3
1.7131 16MnCr5
1.5919 15CrNi6
Quenched and tempered steels unalloyed
1.0402 C 22
1.1151 C22E (Ck22)
1.0503 C 45
1.1191 C45E (Ck45)
Pure copper, low-alloyed copper
2.0240 CuZn15
2.0265 CuZn30
Copper-tin alloy (bronze) short-chipping
2.1090.01 G-CuSn7ZnPb
2.1086.01 G-CuSn10Zn
Plastics
PMMA
POM
PVC
