1" Round Die Stock Holder Zinc Die Cast (P139)

Product information

BAER Die Stocks - Zinc die cast 1'' x 3/8

Our zinc die casting die holder is a very special holding or operating tool designed to hold a thread cutting die and operate it by hand. It is essentially made up of two components: the body and the handles. They are sturdily constructed and therefore very resilient and fit precisely.
The core of the tool is the body. It is provided with a round opening into which the round die is inserted. With the help of five fastening screws, which can be tightened with a flat-blade screwdriver, the round die is fixed in the die holder. The screws engage in the holes of the cutting die and hold it in place in this way in the die holder. The round die is then firmly fixed in place and can be removed. This gives it a tight fit and prevents it from turning when the thread is cut.
There are two handles on the left and right of the body. They allow comfortable handling and optimum distribution of the force. This makes it easy to cut external threads manually without using a machine.
The use of die guides is also possible due to the design. When using die guides, make sure that the holes of the guide overlap with the holes of the die so that the chip transport is guaranteed.
Once you have got the hang of it, cutting precise external threads by hand quickly becomes child's play.

The perfect thread in just a few steps:

  1. Before starting work, the bolt must be prepared. Clamp the bolt in a vice and chamfer the end. This means filing the edges all around at an angle of 45 degrees. This not only makes it easier to insert the cutting tool into the die holder, but also to screw it into the receiving internal thread later.
  2. When the bolt is ready for use, the next step is to prepare the die holder. If the die is suitable for use with a die guide, then you can fit the die guide at this point. The guide will help you to cut the thread vertically. Then insert the die into the die holder and secure it against rotation with the retaining screws.
  3. Cutting is made easier by using cutting oil or cutting paste. Apply a drop to the bolt and/or the thread cutting die in the die holder.
  4. Now place the die holder on the bolt and turn it until the desired thread length is reached. Then unscrew the die holder in the opposite direction.

Dimensions

Height H 9,5 mm
Diameter 25,4 mm
Dimension 1" x 3/8
Length 224 mm

Characteristics

Product group Operating tools
Product type Die Holders
Material Die casting

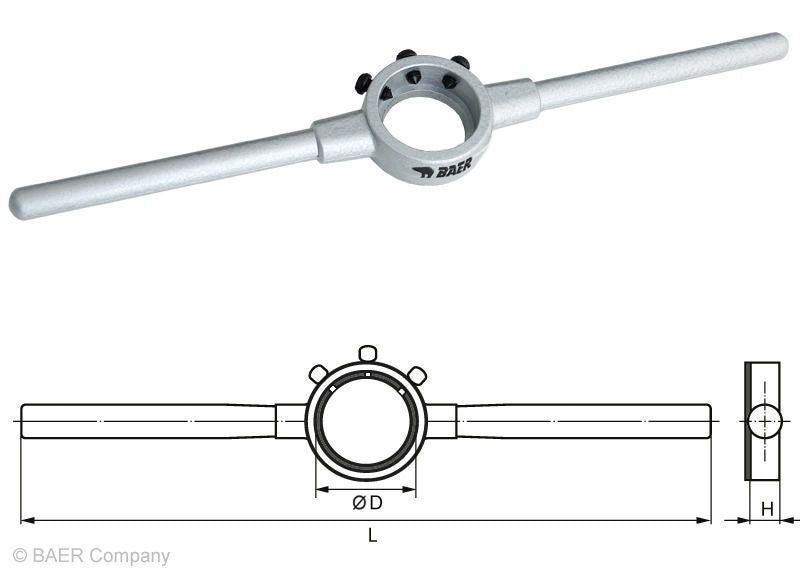

Technical drawing

Height H 9,5 mm
Diameter 25,4 mm
Length 224 mm
