1" X 11 BSP Die HEX BAER TAP
1" X 11 BSP Die HEX BAER TAP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Information
Place your order before 2 PM for same-day shipping!
We partner with DPD for all deliveries, ensuring full traceability and a one-hour delivery window, so you don’t have to wait around all day.
Shipping Cost: €8.99
Free Shipping: On orders over €50
Fast, reliable, and hassle-free delivery—straight to your door!
We ship with DPD
Order before 2pm for next day delivery
Need to collect? We are open 9am - 5pm Mon Friday Saturday 10am - 4PM
Description
Description
BAER Hexagon Die Nut R (BSPT) 1" x 11 - HSS
The hexagon die nut is particularly advantageous for repairs, as it can be moved with ring spanners or open-end spanners, making it easier to reach inaccessible places. BAER thread cutting dies are threading tools that are perfect for external threads. This thread cutting nut has an external hexagon and - depending on the size - has three or more cutting edges on the inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The external thread cutting tool is made of high-speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS hexagonal die nuts can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
Dimensions
Height H | 25 mm |
---|---|
Diameter | 1" |
Pitch | 11 |
Dimension | R (BSPT) 1" x 11 |
Characteristics
Product group | Round cutting die |
---|---|
Product type | Hexagon die nuts |
Thread standard | R (BSPT): Tapered Whitworth pipe thread according to ISO 7/1 DIN EN 10226-1 + 2 |
Tolerance | medium |
Direction | Right |
Standard | DIN 382 |
Material | HSS |
Technical information - Cutting dies
1,5
HSS
medium
Applications
- for recutting and repairing damaged threads
- good machinable materials up to 800 N/mm²
- in places that are difficult to access

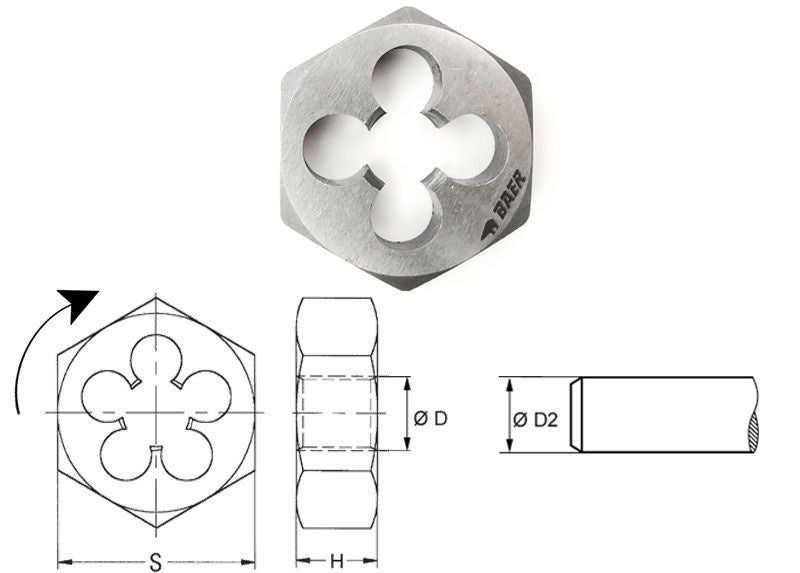

Technical drawing
Height H | 25 mm |
---|---|
Wrench size S | 60 mm |
Dimension Diameter D | R (BSPT) 1" x 11 |
Diameter | 1" |
