BAERCOIL  |  SKU: 262745801

M16 X 2.0 BAER ROUND DIE - 262745801 (P36)

€18.26
Tax included


Delivery and Shipping

Shipping Information

Place your order before 2 PM for same-day shipping!

We partner with DPD for all deliveries, ensuring full traceability and a one-hour delivery window, so you don’t have to wait around all day.

Shipping Cost: €8.99

Free Shipping: On orders over €50

Fast, reliable, and hassle-free delivery—straight to your door!

All our orders are picked, packed and shipped in Dublin! Order before 2pm for Next Day DPD Delivery anywhere in Ireland.

We ship with DPD

Order before 2pm for next day delivery

Need to collect? We are open 9am - 5pm Mon Friday Saturday 10am - 4PM

Description

Product information

BAER Round Cutting Die M 16 x 2.0 - HSS

BAER thread cutting dies are threading tools that are perfect for external threads. Basically, this cutting tool is cylindrical and has - depending on the size - three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The die holder is used to cut the threads by hand and the special die holders also allow you to attach the round die to a tailstock or drill. The dies can usually be used on both sides and have a perfect cut. The tap is made of the high-speed steel HSS, which has better toughness and is less susceptible to breakage than HSSE steel. HSS steel is also a popular material for making tools that are subjected to high stresses. HSS cutting dies can be used for structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloyed copper and short-chipping copper-tin alloys. Also plastics such as POM, PVC etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 18 mm
Diameter 16
Nominal diameter in inches 0,63
Nominal diameter in mm 16
Pitch 2,0
Pitch in mm 2
Dimension M 16 x 2,0

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard M: Metric ISO standard thread according to DIN 13
Tolerance ISO-6g
Direction Right
Standard DIN 223 (DIN EN 2256
Material HSS

Technical information - Cutting dies

Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
1,5
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSS
Tolerance: ISO-6g
Tolerance
ISO-6g

Applications



  • General-purpose use up to 750 N/mm²
  • general structural steels, free-cutting steels, case-hardening steels and unalloyed heat-treatable steels
  • Pure copper, low-alloyed copper, as well as short-chipping copper-tin alloys
  • Plastics such as POM, PVC, etc.

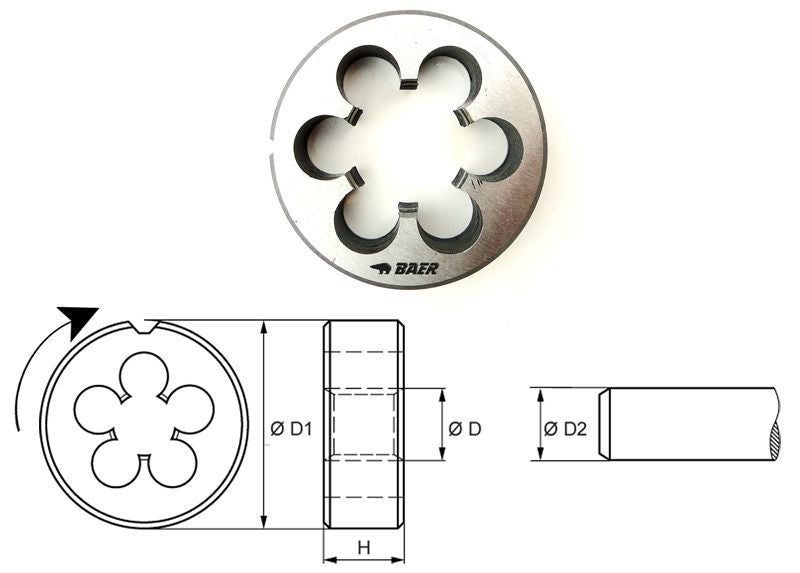

Technical drawing

Bolt pre-cutting diameter D2 15,91 mm
Height H 18 mm
Outside diameter D1 45 mm
Dimension Diameter D M 16 x 2,0
Diameter 16

Application – Sample materials for dies

General construction steels
1.0035 S185 (St33)
1.0036 S235JRH
1.0039 S235JRG1+CR
1.0060 E335 (St60-2)
Free-cutting steels
1.0718 11SMnPb30
1.0721 10S20
1.0726 35S20
1.0758 60SPb20
Case-hardening steels
1.0401 (C15)
1.7016 17CR3
1.7131 16MnCr5
1.5919 15CrNi6
Quenched and tempered steels unalloyed
1.0402 C 22
1.1151 C22E (Ck22)
1.0503 C 45
1.1191 C45E (Ck45)
Pure copper, low-alloyed copper
2.0240 CuZn15
2.0265 CuZn30
Copper-tin alloy (bronze) short-chipping
2.1090.01 G-CuSn7ZnPb
2.1086.01 G-CuSn10Zn
Plastics
PMMA
POM
PVC
