BAER Round Cutting Die MF 16 x 1.5 - HSS
The die is a reliable and durable tool that helps you to produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stock and holders. This allows you to handle the die safely and comfortably. The BAER round die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. Round dies are cylindrical in shape and are used for making external threads in one operation. There are four holes and a groove on the outer casing of the round die, which are used to fasten the die in suitable die holder and holders by means of retaining screws. External threads are cut by hand with die stock. Special die holders are used for the tailstock on a lathe or for the chuck of a drill. The external thread cutting tool is made of high speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS cutting dies can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions
Height H    14 mm
Diameter    16
Nominal diameter in inches    0,63
Nominal diameter in mm    16
Pitch    1,5
Pitch in mm    1,5
Dimension    MF 16 x 1,5
Characteristics
Product group    Round cutting die
Product type    Round cutting dies
Thread standard    MF: Metric ISO fine thread according to DIN 13
Tolerance    ISO-6g
Direction    Right
Standard    DIN 223 (DIN EN 2256
Material    HSS
Technical information - Cutting dies
Schematic representation of Chamfer
Chamfer
1,5
Schematic representation of Material
Material
HSS
Schematic representation of Tolerance: ISO-6g
Tolerance
ISO-6g
Applications
General-purpose use up to 750 N/mm²
general structural steels, free-cutting steels, case-hardening steels and unalloyed heat-treatable steels
Pure copper, low-alloyed copper, as well as short-chipping copper-tin alloys
Plastics such as POM, PVC, etc.

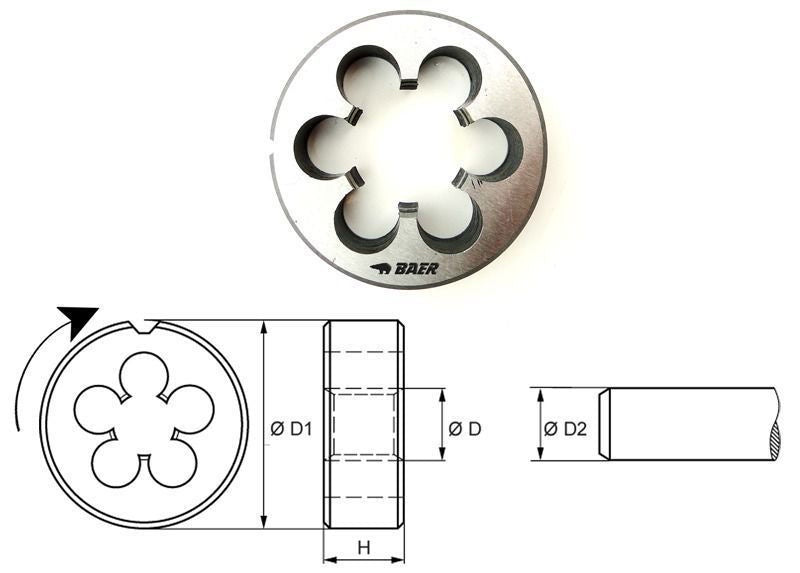

Technical drawing
Technical drawing round die
Bolt pre-cutting diameter D2    15,85 mm
Height H    14 mm
Outside diameter D1    45 mm
Dimension Diameter D    MF 16 x 1,5
Diameter    16
Application – Sample materials for dies
General construction steels
1.0035    S185 (St33)
1.0036    S235JRH
1.0039    S235JRG1+CR
1.0060    E335 (St60-2)
Free-cutting steels
1.0718    11SMnPb30
1.0721    10S20
1.0726    35S20
1.0758    60SPb20
Case-hardening steels
1.0401    (C15)
1.7016    17CR3
1.7131    16MnCr5
1.5919    15CrNi6
Quenched and tempered steels unalloyed
1.0402    C 22
1.1151    C22E (Ck22)
1.0503    C 45
1.1191    C45E (Ck45)
Pure copper, low-alloyed copper
2.0240    CuZn15
2.0265    CuZn30
Copper-tin alloy (bronze) short-chipping
2.1090.01    G-CuSn7ZnPb
2.1086.01    G-CuSn10Zn
Plastics
PMMA
POM
PVC
