M16 X 2 HEX DIE

Product information

BAER Hexagon Die Nut M 16 x 2.0 - HSS

The hexagonal die (also called hexagon die nut) is particularly advantageous for repairs, as it can be moved with ring spanners or open-end spanners, allowing you to reach inaccessible places more easily. BAER dies are perfect for anyone who wants to cut external threads. Basically, this cutting tool has an external hexagon and - depending on the size - has three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Hexagonal die nuts are used to cut screws, nuts and threaded rods in everyday use. The hexagon die nut is made of the high-speed steel HSS, which has better toughness and is less susceptible to breakage than HSSE steel. HSS steel is also a popular material for making tools that are subjected to high stresses. HSS hexagonal die nuts can be used for structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloyed copper and short-chipping copper-tin alloys. Also plastics such as POM, PVC etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 18 mm
Diameter 16
Nominal diameter in inches 0,63
Nominal diameter in mm 16
Pitch 2,0
Pitch in mm 2
Dimension M 16 x 2,0

Characteristics

Product group Round cutting die
Product type Hexagon die nuts
Thread standard M: Metric ISO standard thread according to DIN 13
Tolerance ISO-6g
Direction Right
Standard DIN 382
Material HSS

Technical information - Cutting dies

Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
1,5
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSS
Tolerance: ISO-6g
Tolerance
ISO-6g

Applications



  • for recutting and repairing damaged threads
  • good machinable materials up to 800 N/mm²
  • in places that are difficult to access

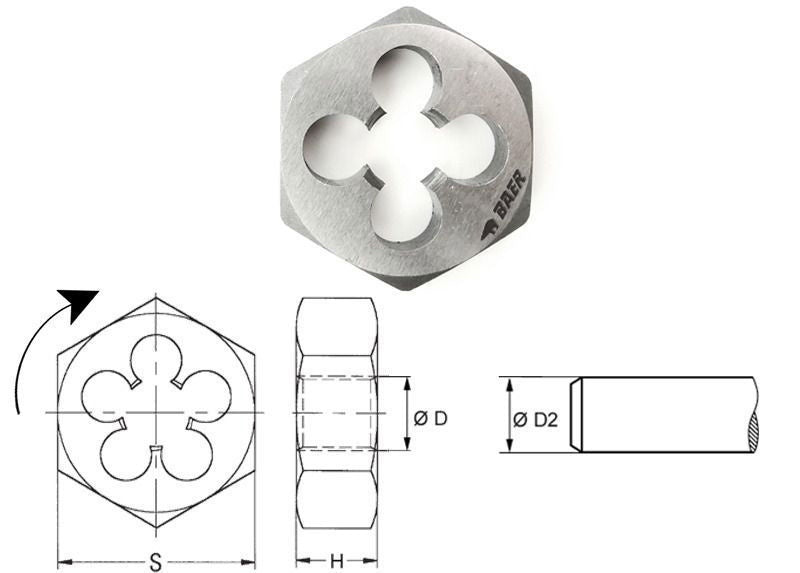

Technical drawing

Bolt pre-cutting diameter D2 15,82 mm
Height H 18 mm
Wrench size S 41 mm
Dimension Diameter D M 16 x 2,0
Diameter 16
