BAERCOIL  |  SKU: 262614802

M12 X 1.5 MF Baer® HEX DIE - 121501021 (P72)

€59.74
Tax included


Delivery and Shipping

Shipping Information

Place your order before 2 PM for same-day shipping!

We partner with DPD for all deliveries, ensuring full traceability and a one-hour delivery window, so you don’t have to wait around all day.

Shipping Cost: €8.99

Free Shipping: On orders over €50

Fast, reliable, and hassle-free delivery—straight to your door!

All our orders are picked, packed and shipped in Dublin! Order before 2pm for Next Day DPD Delivery anywhere in Ireland.

We ship with DPD

Order before 2pm for next day delivery

Need to collect? We are open 9am - 5pm Mon Friday Saturday 10am - 4PM

Description

BAER Hexagon Die Nut MF 12 x 1.5 - HSS


The hexagon die nut is particularly advantageous for repairs, as it can be moved with ring spanners or open-end spanners, making it easier to reach inaccessible places. BAER thread cutting dies are threading tools that are perfect for external threads. This thread cutting nut has an external hexagon and - depending on the size - has three or more cutting edges on the inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The hexagon die nut is made of the high-speed steel HSS, which has better toughness and is less susceptible to breakage than HSSE steel. HSS steel is also a popular material for making tools that are subjected to high stresses. HSS hexagonal die nuts can be used for structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloyed copper and short-chipping copper-tin alloys. Also plastics such as POM, PVC etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 10 mm
Diameter 12
Nominal diameter in inches 0,472
Nominal diameter in mm 12
Pitch 1,5
Pitch in mm 1,5
Dimension MF 12 x 1,5

Characteristics

Product group Round cutting die
Product type Hexagon die nuts
Thread standard MF: Metric ISO fine thread according to DIN 13
Tolerance ISO-6g
Direction Right
Standard DIN 382
Material HSS

Technical information - Cutting dies

Schematic representation of Chamfer
Chamfer
1,5
Schematic representation of Material
Material
HSS
Schematic representation of Tolerance: ISO-6g
Tolerance
ISO-6g

Applications



  • for recutting and repairing damaged threads
  • good machinable materials up to 800 N/mm²
  • in places that are difficult to access

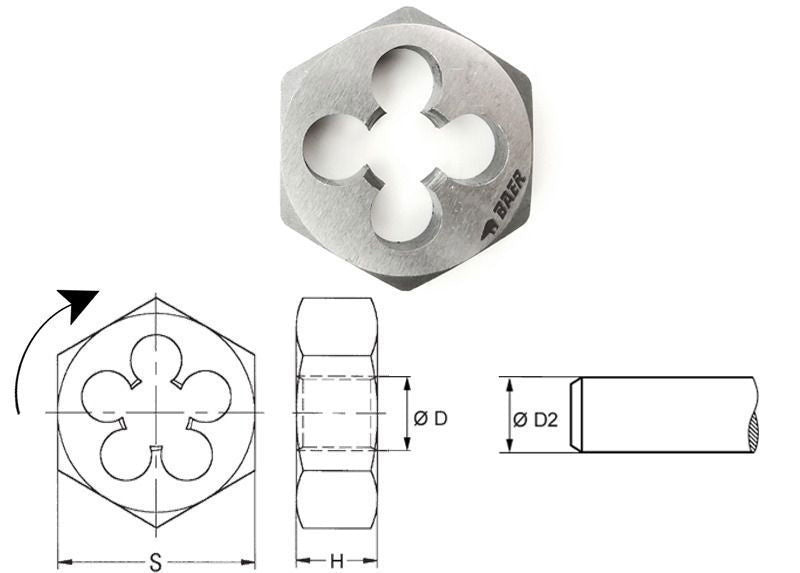

Technical drawing

Technical drawing Hexagon Die Nut
Bolt pre-cutting diameter D2 11,85 mm
Height H 10 mm
Wrench size S 36 mm
Dimension Diameter D MF 12 x 1,5
Diameter 12
