With the BaerFix® spark plug thread repair set, damaged MF 10 x 1.0 threads can be repaired quickly and easily.
This set contains all the tools you need to achieve a permanent and strong anchorage in various materials. The BaerFix® thread repair set is ideal for materials such as aluminium, light metals, non-ferrous metals, brass, bronze, cast iron, plastics, laminates and hardwood. Please note that the set is only suitable for materials with a tensile strength up to approx. 450 N/mm².
BaerFix® thread inserts are self-tapping, guarantee a permanently tight threaded connection in your workpiece and are extremely easy to use. Simply screw into the hole - the inserts cut the holding thread themselves. Once your thread is worn or torn out, a stable connection between the materials is no longer possible. This is where BaerFix® thread insert comes to the rescue. With our self-tapping thread inserts you can repair or strengthen damaged internal thread. Damaged threads in your components do not have to be rejects. Simply insert a threaded insert with the same internal thread into the component and your thread will not only be repaired, it will also be more pull-out resistant and wear resistant. The pull-out strength is higher than a class 8.8 screw.

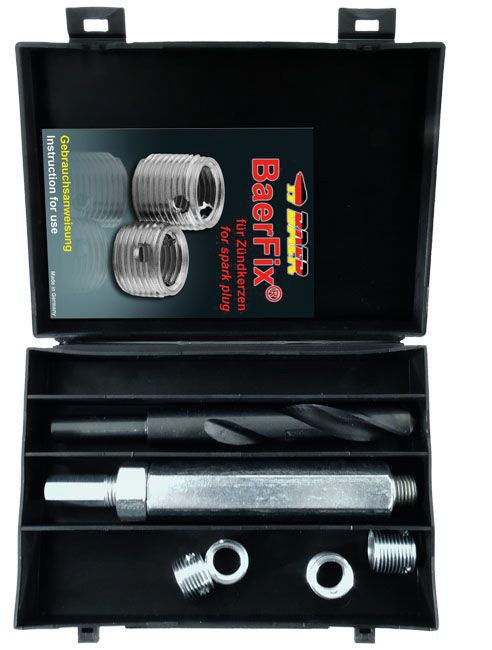

To assist with the repair, in addition to the thread inserts, the set includes a core drill bit, a taper countersink and an assembly tool. Use the core drill bit to prepare the core hole and the installation tool to insert the self-tapping thread insert.
Diameter | 10 |
---|---|
Pitch | 1,0 |
Dimension | MF 10 x 1,0 |
Product group | Self-cutting thread inserts - Thread repair kits |
---|---|
Speed guide value for light metals | 200-300 R/min |
Product type | BaerFix thread repair kits |
Thread standard | MF: Metric ISO fine thread according to DIN 13 |
Tolerance | ISO2/6H |
Direction | Right |
Type | with cutting holes |
Material | Case-hardened steel, galvanized |
Maximum insertion torque | 40 Nm |
---|---|
Speed guide value for light metals | 200-300 R/min |
Drilling depth | Min. drilling depth for through hole: 8.00 mm Min. drilling depth for blind hole: 10.00 mm |
Pre-drilling diameter | 12.4 mm |
D1 | MF 10 x 1,0 |
---|---|
D2 | Special threads |
L1 | 8mm & 13mm |
Diameter | 10 |
