M10 x 1.0 - 13 mm BaerFix Thread Inserts for spark plugss - 5 pcs.

Sold out.

Product information

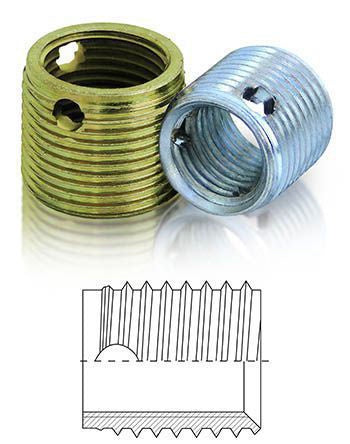

BaerFix Thread Inserts for spark plugss M 10 x 1.0 - 13 mm - 5 pcs.


BaerFix® thread inserts with three cutting holes are self-tapping guarantee a permanent fixed thread connection in your workpiece and are extremely easy to use. Simply screw them into the hole - you cut the holding thread yourself.
If your spark plug thread or glow plug thread is worn or torn out, a stable connection with the spark plug or glow plug is no longer possible. This is where the self-tapping BaerFix® thread insert comes into play. With our self-tapping thread inserts you can repair your broken internal thread or strengthen the existing thread. If the thread in your cylinder head is damaged, this does not have to be a scrap. Simply insert a threaded bush with the same internal thread into the component so that your thread is not only repaired, but can also be loaded with higher pull-out strength at the same time and also becomes more wear-resistant. The thread inserts are designed so that the sealing ring of the spark plug protrudes beyond the thread insert.
The BaerFix® self-tapping thread inserts with tapping holes are ideal when you want to create a strong connection for light and difficult-to-machine materials. These inserts can take more force, which is also distributed over three cutting holes.

Dimensions

Diameter 10
Pitch 1,0
Dimension MF 10 x 1,0

Characteristics

Product group Self-cutting thread inserts
Speed guide value for light metals 200-300 R/min
Product type BaerFix self-cutting inserts with cutting holes
Thread standard MF: Metric ISO fine thread according to DIN 13
Tolerance ISO2/6H
Direction Right
Type with cutting holes
Material Case-hardened steel, galvanized

Guidelines for material machining

Maximum insertion torque 40 Nm
Speed guide value for light metals 200-300 R/min
Drilling depth Min. drilling depth for through hole: 13.00 mm
Min. drilling depth for blind hole: 16.00 mm
Pre-drilling diameter 12.4 mm

Attributes

  • Thread repair damaged or worn threads
  • Repair of spark plug threads and glow plug threads
  • Scrap recovery
  • Thread armoring of materials with low shear strength such as aluminium and magnesium alloys, wood, PVC, etc
  • Cutting the holding thread itself during screwing in
  • high compression with the receiving material
  • very high pull-out strength
  • high corrosion resistance
  • easy to use

Technical drawing

Technical drawing BaerFix thread insert with cutting holes
D1 MF 10 x 1,0
D2 Special threads
L1 13 mm
Diameter 10
