BaerFix Thread Repair Kit for Spark Plug M 14 x 1,25 (F14125)

Product information

BaerFix Spark Plug Thread Repair Kit M 14 x 1.25


With the BaerFix® spark plug thread repair set, damaged MF 14 x 1.25 threads can be repaired quickly and easily.

This set contains all the tools you need to achieve a permanent and strong anchorage in various materials. The BaerFix® thread repair set is ideal for materials such as aluminium, light metals, non-ferrous metals, brass, bronze, cast iron, plastics, laminates and hardwood. Please note that the set is only suitable for materials with a tensile strength up to approx. 450 N/mm².

BaerFix® thread inserts are self-tapping, guarantee a permanently tight threaded connection in your workpiece and are extremely easy to use. Simply screw into the hole - the inserts cut the holding thread themselves. Once your thread is worn or torn out, a stable connection between the materials is no longer possible. This is where BaerFix® thread insert comes to the rescue. With our self-tapping thread inserts you can repair or strengthen damaged internal thread. Damaged threads in your components do not have to be rejects. Simply insert a threaded insert with the same internal thread into the component and your thread will not only be repaired, it will also be more pull-out resistant and wear resistant. The pull-out strength is higher than a class 8.8 screw.

To assist with the repair, in addition to the thread inserts, the set includes a core drill bit, a taper countersink and an assembly tool. Use the core drill bit to prepare the core hole and the installation tool to insert the self-tapping thread insert.

Dimensions

Diameter 14
Pitch 1,25
Dimension MF 14 x 1,25

Characteristics

Product group Self-cutting thread inserts - Thread repair kits
Speed guide value for light metals 150-200 R/min
Product type BaerFix thread repair kits
Thread standard MF: Metric ISO fine thread according to DIN 13
Tolerance ISO2/6H
Direction Right
Type with cutting holes
Material Case-hardened steel, galvanized

Guidelines for material machining

Maximum insertion torque 100 Nm
Speed guide value for light metals 150-200 R/min
Drilling depth Min. drilling depth for through hole: 15.00 mm
Min. drilling depth for blind hole: 18.00 mm
Pre-drilling diameter 17.0 mm

Technical drawing

Technical drawing BaerFix thread insert with cutting holes
D1 MF 14 x 1,25
D2 M 17,7 x 1,25
L1 9mm & 15mm
Diameter 14

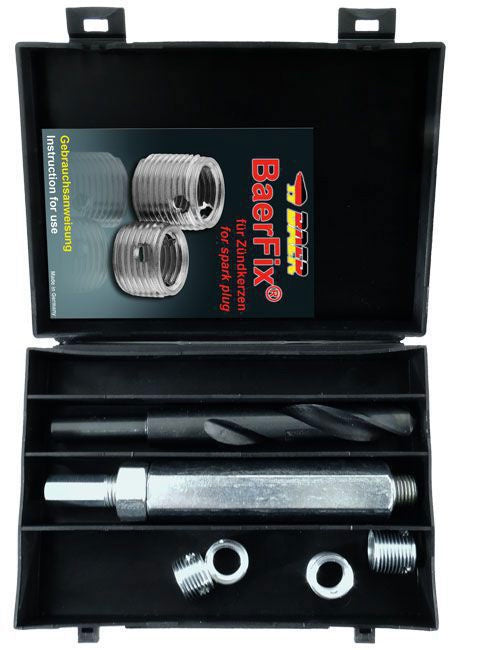

Content

  • 1 x 111170: BaerCoil HSS twist drill bit with countersunk shank 17.00 mm
  • 1 x ZEBW14: BaerFix Installation tool for spark plug thread M 14 x 1.25
  • 2 x FE141251: BaerFix thread insert for spark plug thread M 14 x 1.25 - length: 15 mm - material: case hardened steel, zinc plated
  • 2 x FE141259: BaerFix thread insert for spark plug thread M 14 x 1.25 - length: 9 mm - material: case-hardened steel, galvanised
