BAER Round Cutting Die MF 12 x 1.0 - HSS

Product information

BAER Round Cutting Die MF 12 x 1.0 - HSS

BAER dies are perfect for anyone who wants to cut external threads. Basically, this cutting tool is cylindrical and has - depending on the size - three or more cutting edges inside. The holes between the cutting edges receive the chips, roll them and discharge them. Dies are used to cut screws, nuts and threaded rods in everyday use. The die holder is used to cut the threads by hand and with the special die holders you can also attach the round die to a tailstock or to a drill. The dies can usually be used on both sides and have a perfect cut. The external thread cutting tool is made of high-speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS cutting dies can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 10 mm
Diameter 12
Nominal diameter in inches 0,472
Nominal diameter in mm 12
Pitch 1,0
Pitch in mm 1
Dimension MF 12 x 1,0

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard MF: Metric ISO fine thread according to DIN 13
Tolerance ISO-6g
Direction Right
Standard DIN 223 (DIN EN 2256
Material HSS

Technical information - Cutting dies

Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
1,5
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSS
Tolerance: ISO-6g
Tolerance
ISO-6g

Applications



  • General-purpose use up to 750 N/mm²
  • general structural steels, free-cutting steels, case-hardening steels and unalloyed heat-treatable steels
  • Pure copper, low-alloyed copper, as well as short-chipping copper-tin alloys
  • Plastics such as POM, PVC, etc.

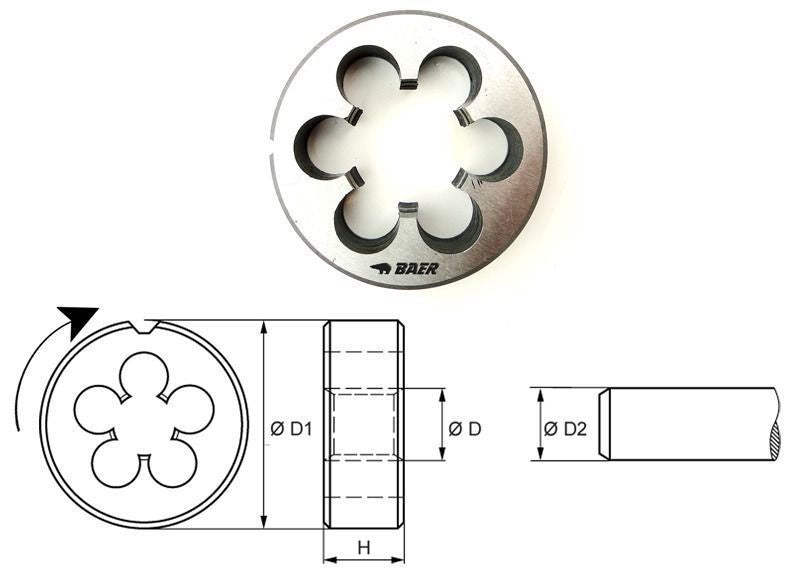

Technical drawing

Bolt pre-cutting diameter D2 11,88 mm
Height H 10 mm
Outside diameter D1 38 mm
Dimension Diameter D MF 12 x 1,0
Diameter 12

Application – Sample materials for dies

General construction steels
1.0035 S185 (St33)
1.0036 S235JRH
1.0039 S235JRG1+CR
1.0060 E335 (St60-2)
Free-cutting steels
1.0718 11SMnPb30
1.0721 10S20
1.0726 35S20
1.0758 60SPb20
Case-hardening steels
1.0401 (C15)
1.7016 17CR3
1.7131 16MnCr5
1.5919 15CrNi6
Quenched and tempered steels unalloyed
1.0402 C 22
1.1151 C22E (Ck22)
1.0503 C 45
1.1191 C45E (Ck45)
Pure copper, low-alloyed copper
2.0240 CuZn15
2.0265 CuZn30
Copper-tin alloy (bronze) short-chipping
2.1090.01 G-CuSn7ZnPb
2.1086.01 G-CuSn10Zn
Plastics
PMMA
POM
PVC
