BAER Hexagon Die Nut UNC 1/2 x 13 - HSS

Product information

BAER Hexagon Die Nut UNC 1/2 x 13 - HSS

The hexagon die nut is particularly advantageous for repairs, as it can be moved with ring or open-end spanners, making it easier to reach inaccessible places. BAER dies are perfect for anyone who wants to cut external threads. Basically, this cutting tool has an external hexagon and - depending on the size - has three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Hexagonal die nuts are used to cut screws, nuts and threaded rods in everyday use. The external thread cutting tool is made of high-speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS hexagonal die nuts can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 14 mm
Diameter 1/2
Nominal diameter in inches 0,5
Nominal diameter in mm 12,7
Pitch 13
Pitch in mm 1,954
Dimension UNC 1/2 x 13

Characteristics

Product group Round cutting die
Product type Hexagon die nuts
Thread standard UNC: American Unified National Coarse thread according to ANSI B1.1
Tolerance 2A
Direction Right
Standard DIN 382
Material HSS

Technical information - Cutting dies

Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
1,5
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSS
Tolerance: 2A
Tolerance
2A

Applications



  • for recutting and repairing damaged threads
  • good machinable materials up to 800 N/mm²
  • in places that are difficult to access

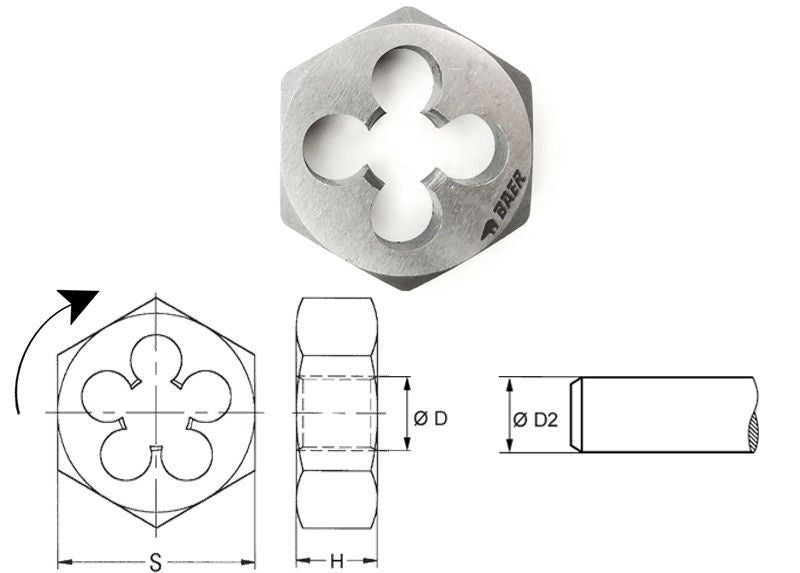

Technical drawing

Bolt pre-cutting diameter D2 12,52 mm
Height H 14 mm
Wrench size S 36 mm
Dimension Diameter D UNC 1/2 x 13
Diameter 1/2
