BAERCOIL  |  SKU: 4058462009211

1/4 X 19 BSP BAER® HEXAGON DIE NUT

€29.42
Tax included


Delivery and Shipping

Shipping Information

Place your order before 2 PM for same-day shipping!

We partner with DPD for all deliveries, ensuring full traceability and a one-hour delivery window, so you don’t have to wait around all day.

Shipping Cost: €8.99

Free Shipping: On orders over €50

Fast, reliable, and hassle-free delivery—straight to your door!

All our orders are picked, packed and shipped in Dublin! Order before 2pm for Next Day DPD Delivery anywhere in Ireland.

We ship with DPD

Order before 2pm for next day delivery

Need to collect? We are open 9am - 5pm Mon Friday Saturday 10am - 4PM

Description

Product information

BAER Hexagon Die Nut G (BSP) 1/4 x 19 - HSS


The hexagonal die (also called hexagonal cutting nut) is particularly advantageous for repairs, as it can be moved with ring spanners or open-end spanners, allowing you to reach inaccessible places more easily. BAER thread cutting dies are threading tools that are perfect for external threads. This metal-cutting tap has an external hexagon and - depending on the size - has three or more cutting edges on the inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The external thread cutting tool is made of high-speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS hexagonal die nuts can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 10 mm
Diameter 1/4
Nominal diameter in inches 0,518
Nominal diameter in mm 13,16
Pitch 19
Pitch in mm 1,337
Dimension G (BSP) 1/4 x 19

Characteristics

Product group Round cutting die
Product type Hexagon die nuts
Thread standard G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread
Tolerance A
Direction Right
Standard DIN 382
Material HSS

Technical information - Cutting dies

Schematic representation of Bild Anschnitt
Chamfer
1,5
Schematic representation of Bild Material
Material
HSS
Schematic representation of Tolerance: A
Tolerance
A

Applications



  • for recutting and repairing damaged threads
  • good machinable materials up to 800 N/mm²
  • in places that are difficult to access

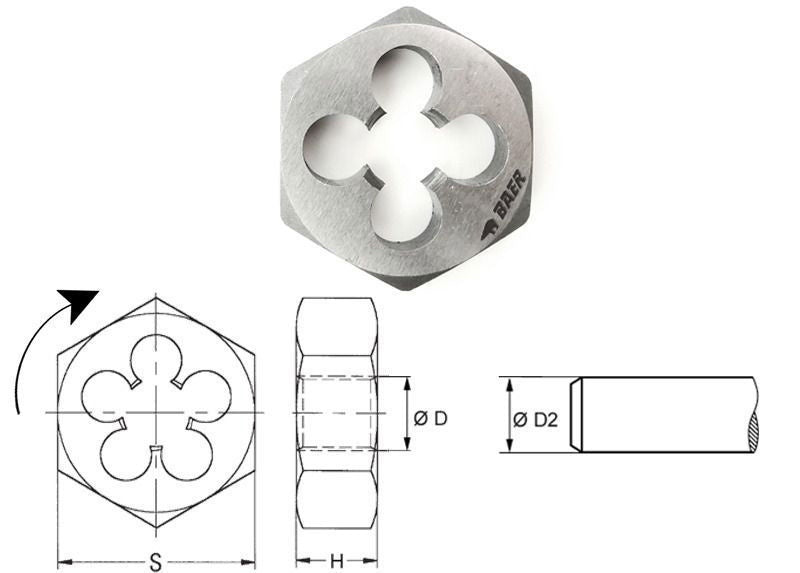

Technical drawing

Technical drawing Hexagon Die Nut
Bolt pre-cutting diameter D2 13,03 mm
Height H 10 mm
Wrench size S 36 mm
Dimension Diameter D G (BSP) 1/4 x 19
Diameter 1/4
