BAERCOIL  |  SKU: 4058462044830

1/4 x 19 - BAER Round Cutting Die G (BSP) HSSE spiral entry

€46.71
Tax included


Delivery and Shipping

Shipping Information

Place your order before 2 PM for same-day shipping!

We partner with DPD for all deliveries, ensuring full traceability and a one-hour delivery window, so you don’t have to wait around all day.

Shipping Cost: €8.99

Free Shipping: On orders over €50

Fast, reliable, and hassle-free delivery—straight to your door!

All our orders are picked, packed and shipped in Dublin! Order before 2pm for Next Day DPD Delivery anywhere in Ireland.

We ship with DPD

Order before 2pm for next day delivery

Need to collect? We are open 9am - 5pm Mon Friday Saturday 10am - 4PM

Description

Product information

BAER Round Cutting Die G (BSP) 1/4 x 19 - HSSE spiral entry


The die is a reliable and durable tool that helps you to produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stock and holders. This allows you to handle the die safely and comfortably. The BAER round die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. Round dies are cylindrical in shape and are used for making external threads in one operation. There are four holes and a groove on the outer casing of the round die, which are used to fasten the die in suitable die holder and holders by means of retaining screws. External threads are cut by hand with die stock. Special die holders are used for the tailstock on a lathe or for the chuck of a drill. The die is made of the high-quality high-speed steel HSSE. HSSE is more heat-resistant, more wear-resistant and has a slightly higher hardness than HSS steel. the round die is therefore more durable and can also be used for demanding tasks. The improved surface finish, the spiral entry and the basic material HSSE give you the necessary strength for working with difficult-to-cut materials and stainless steels. The cutting tool also has a special cutting edge geometry so that it can be used in metalworking for, among other things, tempering and case-hardening steels up to 1200 N/mm², as well as stainless and acid-resistant steels, heat-resistant structural steels and malleable cast iron. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 10 mm
Diameter 1/4
Nominal diameter in inches 0,518
Nominal diameter in mm 13,16
Pitch 19
Pitch in mm 1,337
Dimension G (BSP) 1/4 x 19

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread
Tolerance A
Direction Right
Standard DIN 5158
Material HSSE

Technical information - Cutting dies

Schematic representation of Bild Form
Form / Geometry
with spiral entry (spiral point)
Schematic representation of Bild Anschnitt
Chamfer
2,0
Schematic representation of Bild Material
Material
HSSE
Schematic representation of Tolerance: A
Tolerance
A

Applications



  • Tempering and case-hardening steels up to 1200 N/mm²
  • stainless and acid-resistant steels (VA materials)
  • and for general use

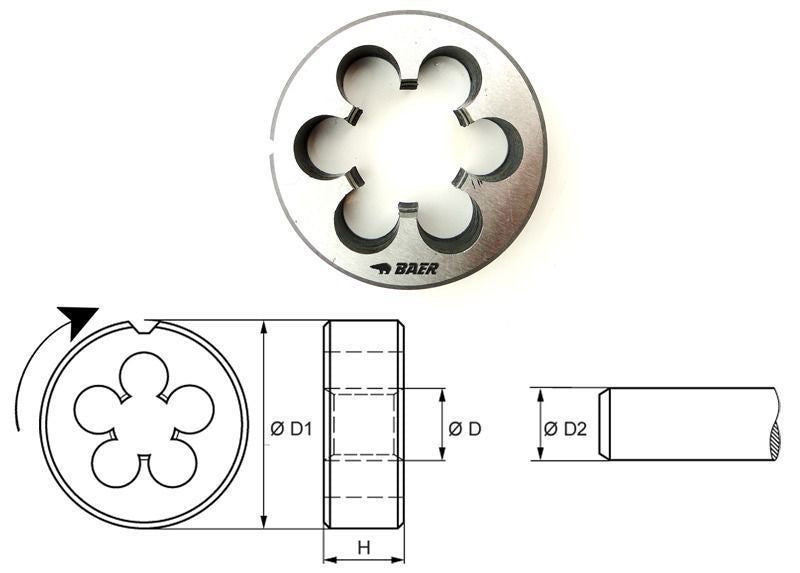

Technical drawing

Technical drawing round die
Bolt pre-cutting diameter D2 13,16 mm
Height H 10 mm
Outside diameter D1 38 mm
Dimension Diameter D G (BSP) 1/4 x 19
Diameter 1/4
