1" 1/8 X 12 UNF X 1.5D BAERCOIL INSERTS 5 PACK

Product information

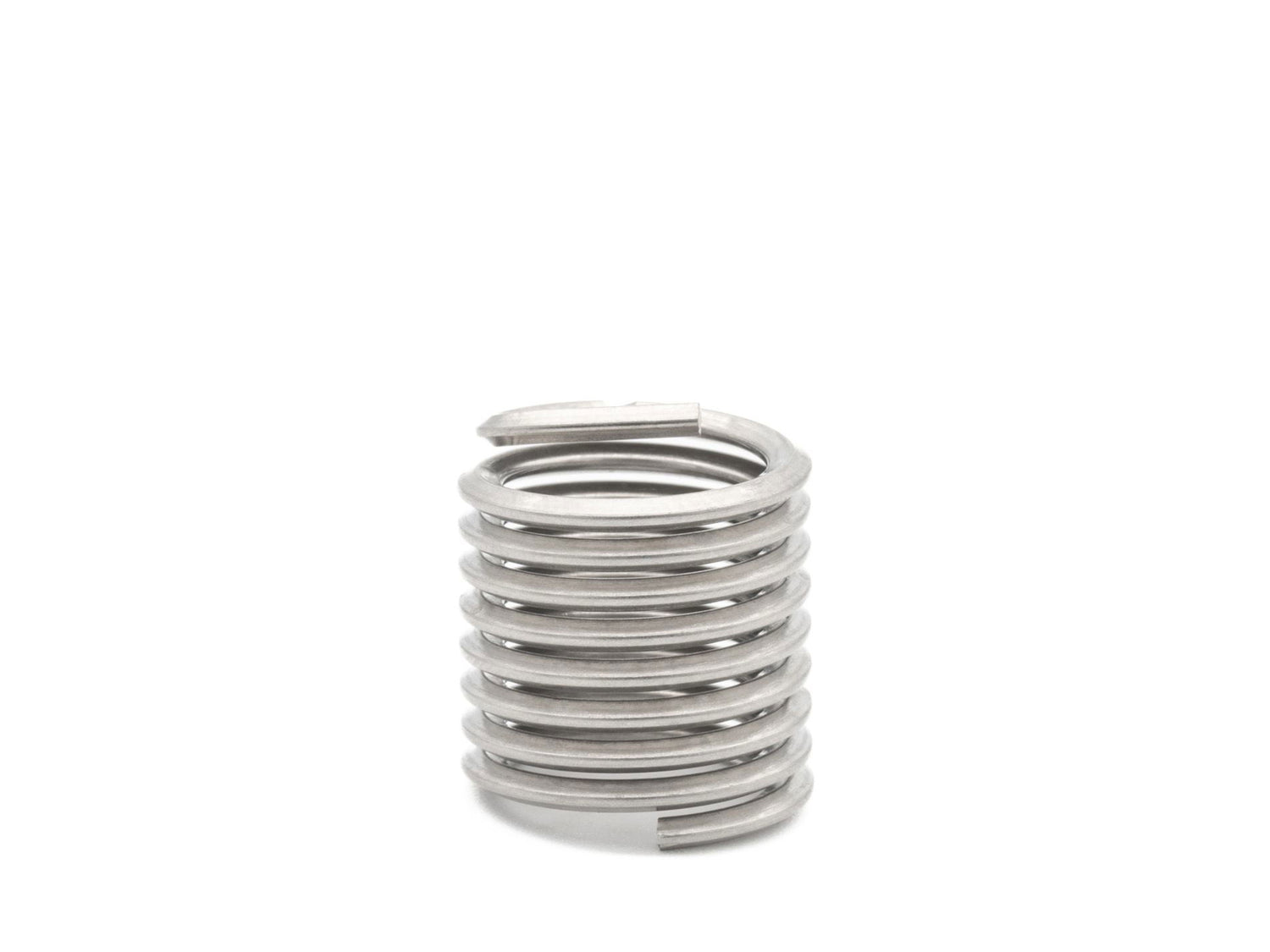

BaerCoil Wire Thread Inserts UNF 1.1/8“ x 12 - 1.5 D (42.86 mm) - free running - 5 pcs.

BaerCoil® thread inserts are made of high-quality materials wire thread inserts. BaerCoil® thread inserts provide a durable and powerful threaded connection and scrap recovery in the thread repair. The inserts also create load-bearing connections in materials with low shear strength. thread inserts are precise and wear-resistant, holding your screw firmly in place without changing the thread insert. Ideal for repairing stripped or worn threads. wire thread inserts are commonly used in automotive, electrical, medical, lightweight construction, and aerospace applications.

The BaerCoil® thread insert is the perfect solution for damaged threads and that at the same time nominal diameter. With BaerCoil® thread inserts, the manufactured thread is significantly more stable than the original thread.

Our thread inserts ensure that both static and dynamic work loads are distributed in a balanced way to the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angular errors, so that optimum force transmission from the bolt to the nut thread is achieved. Particularly in lightweight constructions, BaerCoil® thread inserts help to reduce the carrier material and to use smaller or shorter screw connections. Today, they are already an important component in aviation and vehicle construction. They significantly save material and contribute to the conservation of resources.

BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.

Dimensions

Diameter 1.1/8"
Pitch 12
Dimension UNF 1.1/8" x 12
Length 1,5 D
T (Length when installed) 42,86 mm
Thread length calculation 1.5 D means 1.5 times the diameter: 1.5 times 28.58 mm=42.86 mm
The nominal diameter for UNF 1.1/8" is approx. 28.58 mm

Characteristics

Product group Wire thread inserts
Product type BaerCoil wire thread inserts
Thread standard UNF: American Fine Unified National thread according to ANSI B1.1
Direction Right
Type free running
Tensile strength at room temperature >1400 N/mm²
Material Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301)
Temperature resistance 315°C long-term
425°C short-term

Applications

All normal uses for thread repair and thread reinforcement

Technical drawing

Diameter 1.1/8"
Length 1,5 D
T (Length when installed) 42,86 mm
F (Min. - Max. outside diameter of thread insert) 1,222 '' - 1,334 ''
P (depth) The thread insert must sit 1/4 - 1/2 turns below the surface
B (thread depth with chamfer) 1,979 ''
D (minimum depth of the core hole, without tip) 2,062 ''
