1-FAL12 M12 x 1.75 x 12mm STST BaerFix® Inserts

Product information

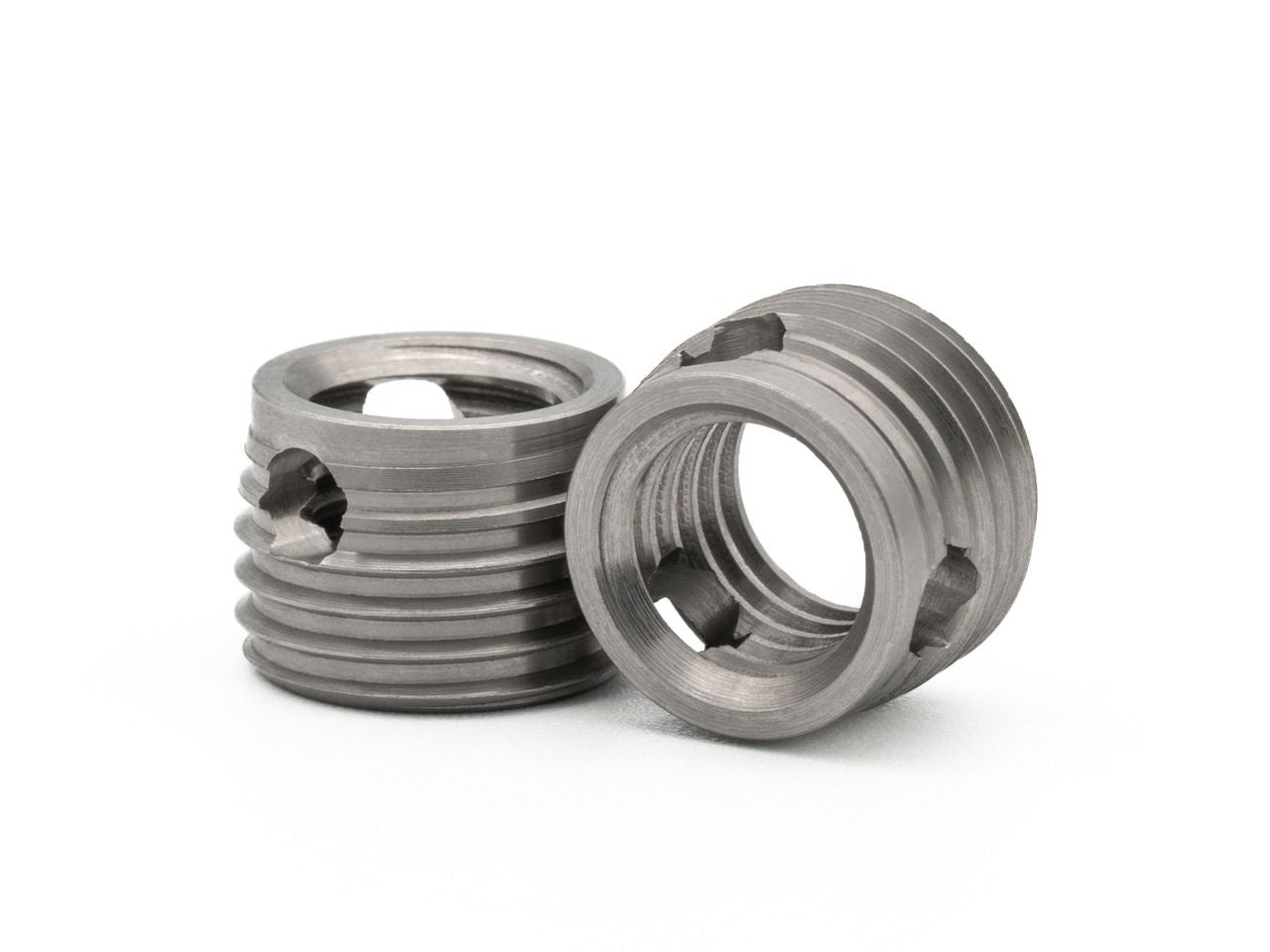

BaerFix Thread Inserts with cutting holes M 12 x 1.75 - 12 mm - 1.4305 - 100 pcs.

BaerFix® thread inserts with three tapping holes are self-tapping and guarantee a permanent fixed thread connection in your workpiece and are extremely easy to handle. Simply screw them into the hole - you cut the holding thread yourself.
If your thread is worn or torn out, a stable material connection is no longer possible. This is where the BaerFix® self-tapping thread insert comes in. With our self-tapping thread inserts you can repair your broken internal thread or strengthen an existing thread. If there are damaged threads in your components, this does not have to be a waste. Simply insert a threaded bush with the same internal thread into the component, so that your thread is not only repaired, but can also be loaded at the same time with higher pull-out strength and is also more wear-resistant.
With BaerFix® thread inserts you need fewer connecting parts, reduce the screw dimensions to be used, save material and space - and all this with low weight and high requirements. For many products, saving weight is an important factor.
The BaerFix® self-tapping thread inserts with cutting holes are ideal when you want to create a strong connection for materials that are difficult to machine. These inserts have a thicker wall and can therefore absorb more force, which is also distributed over three cutting holes. They are also the right choice if you do not need a screw locking effect. If a clamping effect is desired, we recommend our self-tapping thread inserts with cutting slots.

Dimensions

Diameter	12
Pitch	1,75
Dimension	M 12 x 1,75

Characteristics

Product group	Self-cutting thread inserts
Speed guide value for light metals	200-300 R/min
Product type	BaerFix self-cutting inserts with cutting holes
Thread standard	M: Metric ISO standard thread according to DIN 13
Tolerance	ISO2/6H
Direction	Right
Type	with cutting holes
Material	Stainless Steel 1.4305 (AISI 303)

Guidelines for material machining

Maximum insertion torque	60 Nm
Speed guide value for light metals	200-300 R/min
Drilling depth	Min. drilling depth for through hole: 12.00 mm Min. drilling depth for blind hole: 15.00 mm
Pre-drilling diameter	Light metal alloys (tensile strength below 250 N/mm²): 15.0 mm Light metal alloys (tensile strength 250 - 300 N/mm²): 15.1 mm Light metal alloys (tensile strength 300 - 350 N/mm²): 15.2 mm Light metal alloys (tensile strength above 350 N/mm²): 15.4 mm Brass, non-ferrous metals, bronze (tensile strength above 350 N/mm²): 15.2 - 15.4 mm Cast iron (Brinelhardness below 150 HB): 15.0 mm Cast iron(Brinel hardness 150 - 200 HB): 15.1 - 15.2 mm Cast iron (Brinel hardness above 200 HB ): 15.4 mm

Attributes

Thread repair damaged or worn threads
Scrap recovery
Thread armoring of materials with low shear strength such as aluminium and magnesium alloys, wood, PVC, etc
For example, in an application in light metal, a pull-out strength can be achieved that is higher than the yield strength of an 8.8 screw.
Cutting the holding thread itself during screwing in
high compression with the holding material
very high pull-out strength
minimises space and weight
high corrosion resistance
easy to use
Areas of application in the entire metal and plastics processing industry
