Description
Description

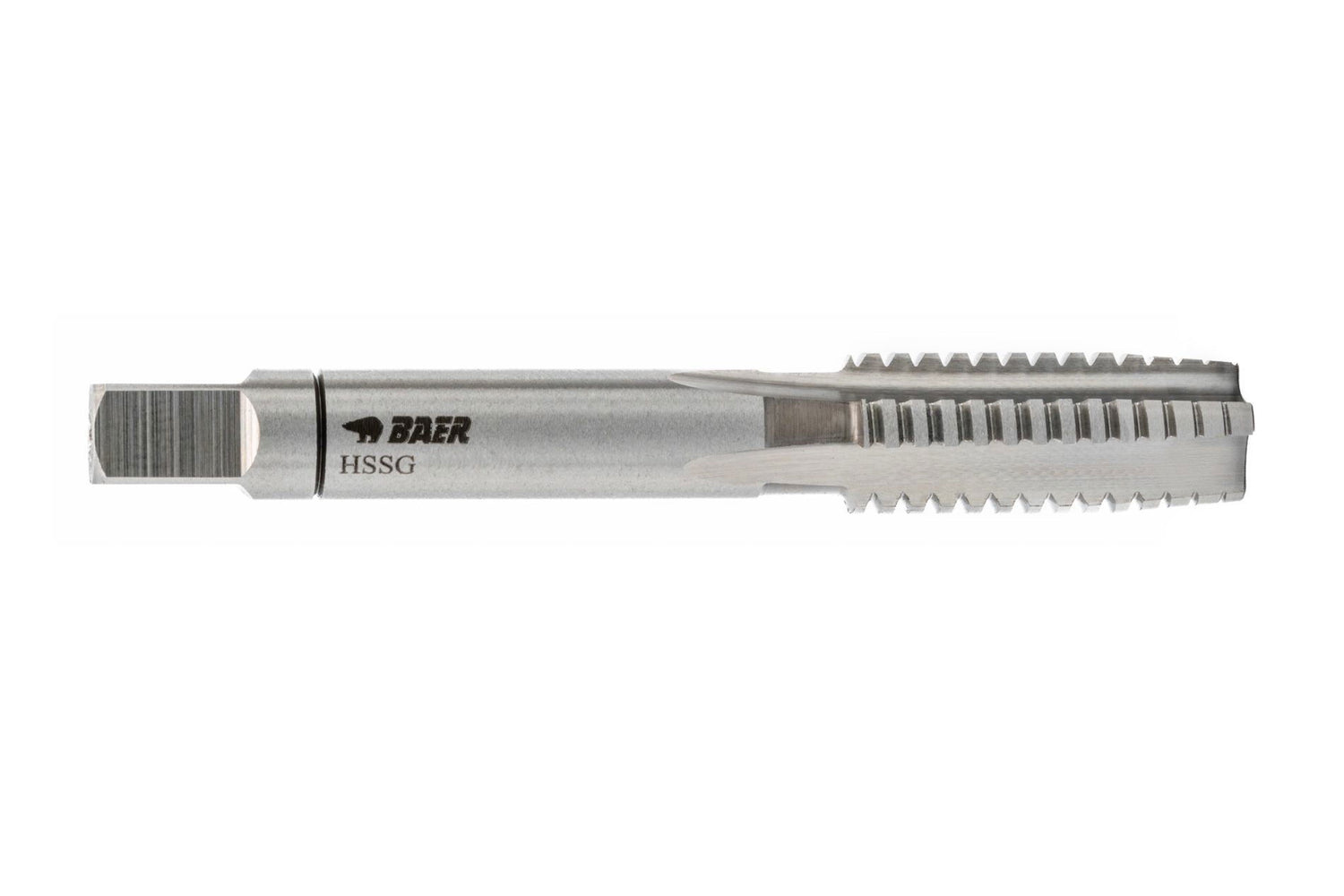

BAER HSSG Hand Tap Taper (No. 1) UN 1.1/4 x 8
The hand tap taper tap (No. 1) enables you to pre-cut a thread. The advantage of pre-cutting a thread is that the cutting forces on the subsequent finishing tap (No. 3) are reduced. The taper tap (No. 1) is marked with a ring and removes approx. 65 percent of the thread profile. Because no complete thread profile is cut, the thread is not yet usable. Only when the finishing tap (No. 3) completes the thread in the last process is it fully usable. By dividing the work between two or three taps, it is easier to cut a straight and clean thread by hand.
Compared to the machine tap, the hand tap has a short shank. This allows you to cut internal thread by hand without jamming and can be operated with tap wrenches, tool ratchets or other holding tools with square drive.
The thread can be cut in a pre-drilled core hole.
Dimensions
| Diameter | 1.1/4" |
|---|---|
| Nominal diameter in inches | 1,25 |
| Nominal diameter in mm | 31,75 |
| Pitch | 8 |
| Pitch in mm | 3,175 |
| Dimension | UN 1.1/4" x 8 |
| Square | 18 mm |
Characteristics
| Product group | Screw taps |
|---|---|
| Product type | Hand tap sets |
| Thread standard | UN: American Unified National thread according to ANSI B1.1 - 8 TPI with 8 threads per inch |
| Tolerance | 2B |
| Direction | Right |
| Standard | DIN 2184-2 |
| Tensile strength at room temperature | up to 900 N/mm² | 27.1 HRC |
| Material | HSSG bright |
28.75 mm
Through hole and blind hole up to 2 x D
Form A straight fluted
6-8 threads
Rarely occurs. Chips remain in flutes.
External cooling and lubrication
HSSG bright
up to 900 N/mm² | 27.1 HRC
2B
Applications
- Materials with good machinability up to 900 N/mm²
- Unalloyed and low-alloy steels
Technical drawing
| D1 | UN 1.1/4 x 8 |
|---|---|
| D2 | 22 mm |
| L1 | 125 mm |
| L2 | 36 mm |
| Diameter | 1.1/4" |
| Square | 18 mm |
Application – Sample materials for taps
| Unalloyed construction steels | |
|---|---|
| 1.0035 | S185 (St33) |
| 1.0036 | S235JRH |
| 1.0038 | RSt37-2 |
| 1.0039 | S235JRG1+CR |
| 1.0044 | St44-2 |
| 1.0060 | E335 (St60-2) |
| 1.0116 | St37-3 |
| 1.0570 | St 52-3 |
| Alloyed construction steels | |
|---|---|
| 1.5415 | 15Mo3 |
| 1.5423 | 16Mo5 |
| 1.5622 | 14Ni6 |
| 1.7335 | 13CrMo44 |
| 1.7337 | 16CrMo44 |
| 1.7715 | 14MoV63 |
| Free-cutting steels | |
|---|---|
| 1.0711 | 9S20 |
| 1.0715 | 9SMn28 |
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0723 | 15S20 |
| 1.0726 | 35S20 |
| 1.0737 | 9SMnPb36 |
| 1.0758 | 60SPb20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.0402 | C 22 |
| 1.1151 | C22E (Ck22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck45) |
| Cast steel | |
|---|---|
| 1.0420 | GS-38 |
| 1.5419 | GS-22 Mo 4 |
| 1.6750 | GS-20 NiCrMo3 7 |
| 1.7357 | GS-17 CrMo 5 5 |
| Malleable cast iron | |
|---|---|
| 0.8145 | EN-GJMB 450-6 |
| 0.8170 | EN-GJMB 700-2 |
| 0.8045 | EN-GJMW-450-7 |
| 0.8055 | EN-GJMW-550-4 |
| Pure copper low-alloyed | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
| Brass short-chipping | |
|---|---|
| 2.0401 | CuZn39Pb3 |
| Brass long-chipping | |
|---|---|
| 2.0321 | CuZn37 |
| 2.0335 | CuZn36 |
| 2.0360 | CuZn40 |
| Aluminum cast Si > 5-12 % | |
|---|---|
| 3.2161 | G-AlSi8Cu3 |
| 3.2163 | G-AlSi9Cu3 |
| 3.2381 | G-AlSi10Mg |
| 3.2583 | G-AlSi12(Cu) |
| Lamellar graphite cast iron | |
|---|---|
| 0.6010 | EN-GJL 100 (GG-10) |
| 0.6020 | EN-GJL 200 (GG -20) |
| 0.6025 | EN-GJL 250 (GG-25) |
| 0.6030 | EN-GJL 300 (GG -30) |
| Copper-tin alloy (bronze) short-chipping | |
|---|---|
| 2.1090.01 | G-CuSn7ZnPb |
| 2.1086.01 | G-CuSn10Zn |
| 2.1097 | G-CuSn5ZnPb |
| Pure copper, low-alloyed copper | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
