M10 x 1.5 BAER HSSG Hand Tap Intermediate (No. 2) - LEFT
M10 x 1.5 BAER HSSG Hand Tap Intermediate (No. 2) - LEFT is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping Information
Place your order before 2 PM for same-day shipping!
We partner with DPD for all deliveries, ensuring full traceability and a one-hour delivery window, so you don’t have to wait around all day.
Shipping Cost: €8.99
Free Shipping: On orders over €50
Fast, reliable, and hassle-free delivery—straight to your door!
M10 x 1.5 BAER HSSG Hand Tap Intermediate (No. 2) - LEFT
We ship with DPD
Order before 2pm for next day delivery
Need to collect? We are open 9am - 5pm Mon Friday Saturday 10am - 4PM
Description
Description

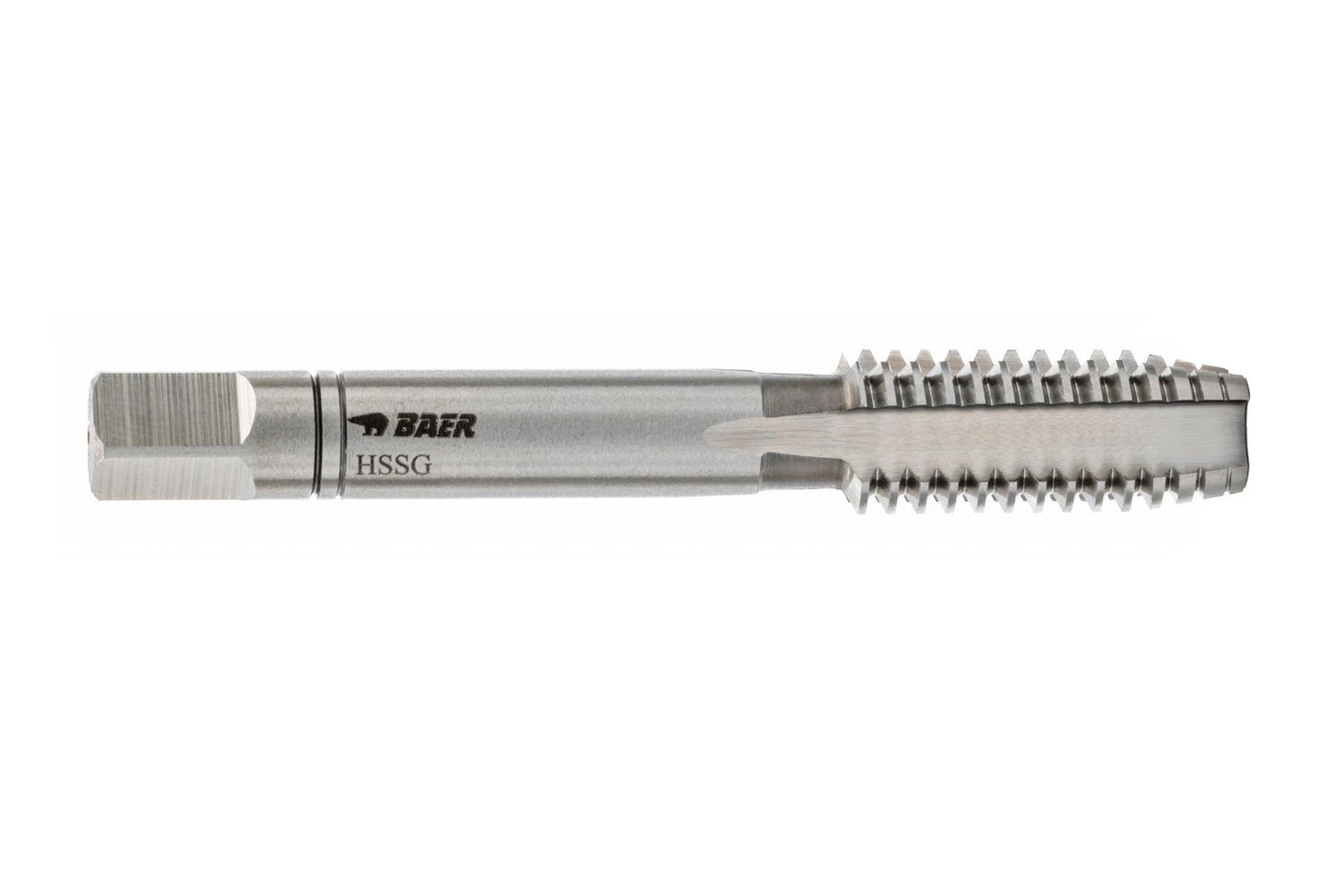

BAER HSSG Hand Tap Intermediate (No. 2) M 10 x 1.5 - LEFT
The left-hand tap intermediate tap (No. 2) allows you to shape a left-hand thread before finishing it with the finishing tap (No. 3). The advantage of pre-cutting a thread with the intermediate tap (No. 2) is that the cutting forces on the subsequent finishing tap (No. 3) are reduced. The intermediate tap (No. 2) is marked with two rings and removes approx. 85 percent of the thread profile. Because no complete thread profile is cut, the thread is not yet usable. Only when the finishing tap (No. 3) completes the thread in the last process is it fully usable. By dividing the work between two or three taps, it is easier to cut a straight and clean thread by hand.
Compared to the machine tap, the hand tap has a short shank. This allows you to cut internal thread by hand without jamming and can be operated with tap wrenches, tool ratchets or other holding tools with square drive.
The thread can be cut in a pre-drilled core hole.
A left-hand thread is tapped counterclockwise. The left-hand tap or left-hand screw tap is also operated counterclockwise.
Dimensions
| Diameter | 10 |
|---|---|
| Nominal diameter in inches | 0,394 |
| Nominal diameter in mm | 10 |
| Pitch | 1,5 |
| Pitch in mm | 1,5 |
| Dimension | M 10 x 1,5 |
| Square | 5,5 mm |
Characteristics
| Product group | Screw taps |
|---|---|
| Product type | Hand tap sets |
| Thread standard | M: Metric ISO standard thread according to DIN 13 |
| Tolerance | ISO2/6H |
| Direction | Left |
| Standard | DIN 352 |
| Tensile strength at room temperature | up to 900 N/mm² | 27.1 HRC |
| Material | HSSG bright |
8.5 mm
Through hole and blind hole up to 2 x D
Form D straight fluted
3.5-5 threads
Rarely occurs. Chips remain in flutes.
External cooling and lubrication
HSSG bright
up to 900 N/mm² | 27.1 HRC
ISO2/6H
Applications
- Materials with good machinability up to 900 N/mm²
- Unalloyed and low-alloy steels
Technical drawing
| D1 | M 10 x 1,5 |
|---|---|
| D2 | 7 mm |
| L1 | 70 mm |
| L2 | 24 mm |
| Diameter | 10 |
| Square | 5,5 mm |
Application – Sample materials for taps
| Unalloyed construction steels | |
|---|---|
| 1.0035 | S185 (St33) |
| 1.0036 | S235JRH |
| 1.0038 | RSt37-2 |
| 1.0039 | S235JRG1+CR |
| 1.0044 | St44-2 |
| 1.0060 | E335 (St60-2) |
| 1.0116 | St37-3 |
| 1.0570 | St 52-3 |
| Alloyed construction steels | |
|---|---|
| 1.5415 | 15Mo3 |
| 1.5423 | 16Mo5 |
| 1.5622 | 14Ni6 |
| 1.7335 | 13CrMo44 |
| 1.7337 | 16CrMo44 |
| 1.7715 | 14MoV63 |
| Free-cutting steels | |
|---|---|
| 1.0711 | 9S20 |
| 1.0715 | 9SMn28 |
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0723 | 15S20 |
| 1.0726 | 35S20 |
| 1.0737 | 9SMnPb36 |
| 1.0758 | 60SPb20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.0402 | C 22 |
| 1.1151 | C22E (Ck22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck45) |
| Cast steel | |
|---|---|
| 1.0420 | GS-38 |
| 1.5419 | GS-22 Mo 4 |
| 1.6750 | GS-20 NiCrMo3 7 |
| 1.7357 | GS-17 CrMo 5 5 |
| Malleable cast iron | |
|---|---|
| 0.8145 | EN-GJMB 450-6 |
| 0.8170 | EN-GJMB 700-2 |
| 0.8045 | EN-GJMW-450-7 |
| 0.8055 | EN-GJMW-550-4 |
| Pure copper low-alloyed | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
| Brass short-chipping | |
|---|---|
| 2.0401 | CuZn39Pb3 |
| Brass long-chipping | |
|---|---|
| 2.0321 | CuZn37 |
| 2.0335 | CuZn36 |
| 2.0360 | CuZn40 |
| Aluminum cast Si > 5-12 % | |
|---|---|
| 3.2161 | G-AlSi8Cu3 |
| 3.2163 | G-AlSi9Cu3 |
| 3.2381 | G-AlSi10Mg |
| 3.2583 | G-AlSi12(Cu) |
| Lamellar graphite cast iron | |
|---|---|
| 0.6010 | EN-GJL 100 (GG-10) |
| 0.6020 | EN-GJL 200 (GG -20) |
| 0.6025 | EN-GJL 250 (GG-25) |
| 0.6030 | EN-GJL 300 (GG -30) |
| Copper-tin alloy (bronze) short-chipping | |
|---|---|
| 2.1090.01 | G-CuSn7ZnPb |
| 2.1086.01 | G-CuSn10Zn |
| 2.1097 | G-CuSn5ZnPb |
| Pure copper, low-alloyed copper | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
